Instrumentation/Electronics
Our comprehensive range of weighing instrumentation offers you a quality assured, cost effective and purpose designed solution to a diverse range of industrial and process weighing applications.
You can be assured of rugged build quality, reliability, high performance, fast setup and ease of use. A range of add-on options provide extra versatility and flexibility to the essential building blocks, leading to a modular and future-proof solution.
Several options are available:
- Junction Boxes for 4 or 8 load cells in ABS, Aluminium or Stainless Steel (optionally with ATEX approval)
- Intelligent Junction Box for individual monitoring of load cell performance and error checking of up to 4 load cells
- Simple weighing transmitters (with analogue output for connection to a PLC) or high speed transmitters with built-in weight indication, external communications, set points and dedicated check weigher functions
- Purpose designed weight indicators with external communications, ATEX approval for use in hazardous areas and IP69K protection for use in harsh, wash-down environments
- Dedicated weighing controllers for batching, filling, check weighing, truck weighing and axle weighing, with communications and relay outputs
- Instrumentation/electronics with Weights and Measures approvals (legal-for-trade) : OIML R76, NTEP and EN45501:2015 (NAWI)
- Remote displays for secondary weight indication at a different location
- Load cell tester with intelligent diagnostics
- Load cell simulator
Communication protocols available:
- Analogue outputs (0-20mA, 4-20mA, 0-5V, 0-10V, +/- 5V, +/- 10V)
- RS232/485
- MODBUS (RTU and ASCII)
- EtherNet/IPTM
- Profibus® DP
- PROFINET
- DeviceNETTM
- Wireless Telemetry and Bluetooth (on request)
All of Thames Side Sensors' junction boxes and electronics products manufactured since July 2014 are RoHS 2 compliant.
To create a complete weighing system, Thames Side also offers an extensive range of load cells and complete weighing assemblies; this ensures that optimum performance is achieved in all weighing applications.
Contact Us or Find our Local Partner nearest you for more information and a fast quotation.
Junction Boxes
- 4 or 8 load cell versions, IP66
- ABS, Aluminium, Stainless Steel
- Trimming potentiometer options
- ATEX approved options
- Options with built-in lightning surge arrestors
- Digital load cell options
- Intelligent Junction Box for continuous load cell signal monitoring
Amplifiers and Transmitters
- With or without a digital display
- Analogue outputs and relay set points
- OIML R76, EN 45501 (NAWI), CE approvals
- Optional PROFIBUS, PROFINET, DeviceNET, MODBUS, RS232, RS485, Ethernet/IP interfaces
- Models with built-in check weigher function
- DIN/Omega rail, Panel or Surface mount
Weight Indicators
- Bright LED digital displays
- Analogue output options for connection to a PLC
- Ethernet, RS232, RS485, MODBUS interfaces
- ATEX approvals
- OIML R76, NTEP, EN 45501 (NAWI), CE approvals
- Set points
- IP69K model for wash-down environments
Weight Controllers
- ABS or stainless steel construction
- OIML R76, EN 45501 (NAWI), CE approvals
- Multi-range capability
- Application-specific firmware available
- Analogue outputs, RS232, RS485, Ethernet, MODBUS
- Multi-lingual option with Matrix 2
Legal-for-trade Approved
- OIML R76, NTEP, EN 45501 (NAWI)
- ATEX approved versions
- IP69K protection available
- Dedicated firmware for truck scales/weighbridges, check weigher, batching, filling, loss-in-weight etc.
- Analogue outputs and relay set points
- Optional PROFIBUS, PROFINET, MODBUS, RS232, RS485, Ethernet/IP interfaces
- DIN/Omega rail, Panel or Surface mount
ATEX Approved
- Junction boxes for all zones (aluminium)
- Stainless steel indicators
- With OIML R76 and EN 45501 (NAWI) approvals

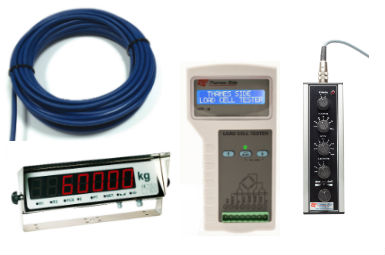

Cable and Accessories
- Special durable Polyurethane cable
- Remote Displays
- Load cell tester with intelligent diagnostics
- Load cell signal simulator
Discontinued Instrumentation
- XT950
- XT1200
- XT1500
- And other models
