S-type Tension Load Cells

Thames Side’s range of S-type (also called S-beam or folded shear beam) tension load cells has amongst the highest specifications in the market for process weighing applications.  They can also be used in compression, although that is much less common.

They are designed specifically for applications in suspended tank and vessel weighing, big bag (FIBC) filling machines, concrete batching equipment and conveyor belt scales, amongst others.

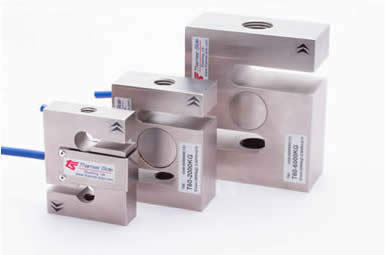

T60 with logo

T60 (50kg - 6,000kg)

  • Nickel plated alloy steel
  • Cost effective solution
  • Wide capacity range - an excellent model to standardise on
  • Durable polyurethane cable
T61 with logo

T61 (50kg - 1,000kg)

  • Nickel plated alloy steel
  • Cost effective solution
  • 3 mV/V sensitivity
  • Durable polyurethane cable

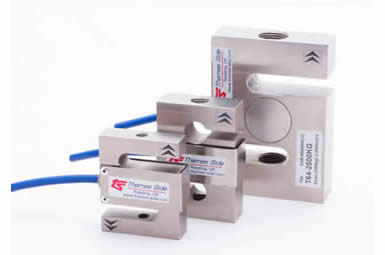

T64 with logo

T64 (50kg - 2,500kg)

  • Nickel plated alloy steel
  • Cost effective solution
  • Durable polyurethane cable

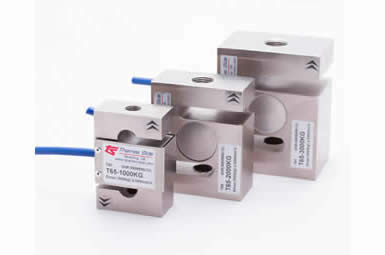

T65 with logo

T65 (50kg - 3,000kg)

  • Nickel plated alloy steel
  • Cost effective solution
  • Durable polyurethane cable

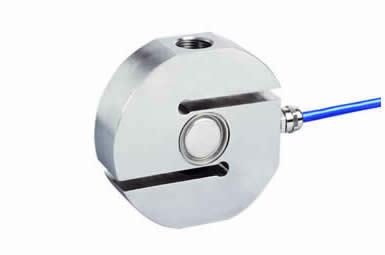

T68 with logo

T68 (250kg - 7,500kg)

  • Stainless steel tension load cell
  • Fully welded and hermetically sealed to IP68/IP69K
  • OIML C3 approval
  • ATEX approval available
  • Durable polyurethane cable

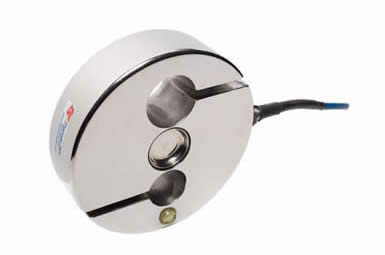

T95 with logo

T95 (2,000kg - 20,000kg)

  • For mixer/agitator, weigh-in-motion (WIM) and axle weighing applications
  • Stainless steel load cell
  • OIML C3 approval up to 10,000kg
  • IP68/IP69K
  • ATEX and IECEx



Model T68 is a stainless steel tension load cell with weights and measures OIML approval at most capacities, for use in the harshest industrial environments due to its fully welded and hermetically sealed construction - with IP68/IP69K approval.

Models T60, T61 and T65 are constructed from nickel plated alloy steel, with 4-wire and 6-wire versions available.  These offer an extremely cost effective solution where stainless steel or hermetic sealing is not required.

Our S-type tension load cell range can also be used in compression (with the appropriate adapters).  They are not suitable for dynamic (through zero) loading.

For applications where vibration or mixing/agitation may otherwise have an influence on the load cell output, the T95 load cell (together with its dedicated pendulum style mounting accessory up to 10 tonnes maximum) will allow significant movement of a vessel or tank with mixing/agitation while maintaining high accuracy weight measurement.

We can supply technical drawings and 3D CAD files (e.g. in STEP format) to engineers who are specifying load cells for new equipment.

CE-mark-transparent  All of our load cells manufactured since July 2014 are RoHS 2 compliant.

Complementing our S-type tension load cells is a broad range of precision measuring electronics to provide an optimum weighing solution in a diverse range of applications.

We hold an extensive stock of standard products at our UK and EU warehouses and our Global Network of carefully selected Partners also carries stock, so that products can be shipped immediately on request.

Contact Us or find our Local Partner nearest you for more information and a fast quotation.



Further information

Contact Thames Side now to discuss your requirements for S-type load cells in any application. We have the experience and applications knowledge to provide expert guidance on the optimum solution for you.
