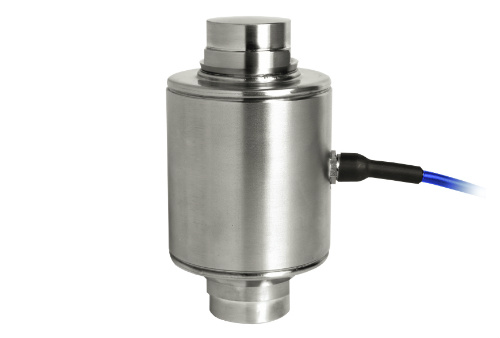

T35D Digital Column Cell

The T35D is a digital compression column stainless steel load cell with a self-centering rocker column design.  It has an internal state-of-the-art microprocessor that improves accuracy, resolution and corner correction adjustment.  Individual communication with the weight indicator, or PC, allows faster fault finding and faster load cell replacement.

It is suitable for use in truck scales / weighbridges thanks to its OIML R60 C4 approval (with option of OIML R60 C5 version), its robust design, proven rotation stop and rodent (rat) resistant Polyurethane cable.

With a fully welded and hermetically sealed construction, protected to IP68 and IP69K, and integral lighting protection as standard, it is also very simple to install.

To simplify the commissioning of a truck scale or weighbridge, the T35D digital load cell uses an RS485 full duplex digital interface to allow simpler and faster corner adjustment and calibration, compared with analogue load cells. Note that the T35D has an OPEN PROTOCOL, which is a very interesting benefit to truck scale / weighbridge manufacturers.

Make an enquiry about this dependable, robust digital load cell for truck scale / weighbridge applications.

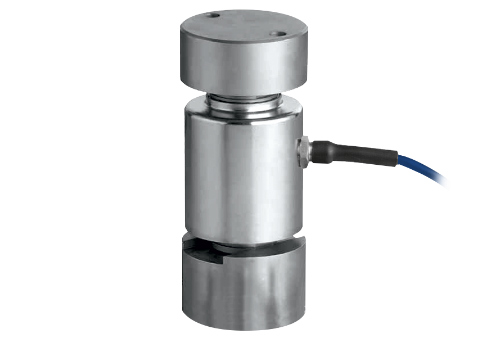

The associated LA35 mounting accessory provides 2 off zinc plated mounting cups (the lower one having 2 off anti-rotation faces), 3 alignment washers and associated bolts.

For use in aggressive environments where stress corrosion or acid attack is a potential problem, a special Parylene coating can be specified as an option.  In high temperature environments, an optional variant for use up to +150 °C is available.

Key features:

• Capacities 30,000kg and 40,000kg
• Stainless steel construction
• OIML R60 C4 approval (option of OIML R60 C5 version)
• Built-in microprocessor
• Digital RS485 interface for simpler and faster pre-corner adjustment, system calibration, fault finding and maintenance
• OPEN protocol
• Fully welded and hermetically sealed stainless steel load cell, protected to IP68 and IP69K
• In-built surge arrestors (GDTs) for lightning protection as standard
• Operating temperature range: -30 °C to +70 °C
• An analogue version, T35, is also available (alternatively see models T34X, T34 and T34D digital)

Benefits compared with analogue T35 load cell:

• Higher resolution (up to 1 000 000 steps from zero to full scale)
• Intelligent, error-free compensation for each individual load cell, with simpler and faster corner adjustment
• Simpler and faster maintenance with continuous, individual self-diagnosis
• Higher accuracy (OIML R60 C5 option available)
• Remote diagnostics via modem using direct PC connection
• Greater EMC protection against interference (digital signal transmission)
• Direct PC connection via RS485 bus and RS232 converter, up to 1200 metres away (with RS485)
• Internal signal filtering

Typical applications:

• Truck scales, weighbridges and vehicle weighing
• Static and dynamic train weighing
