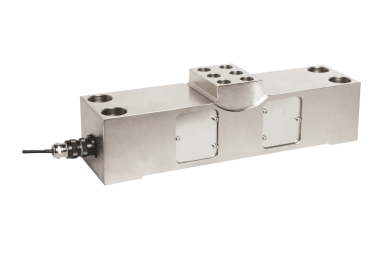

T38 High Temperature Load Cell

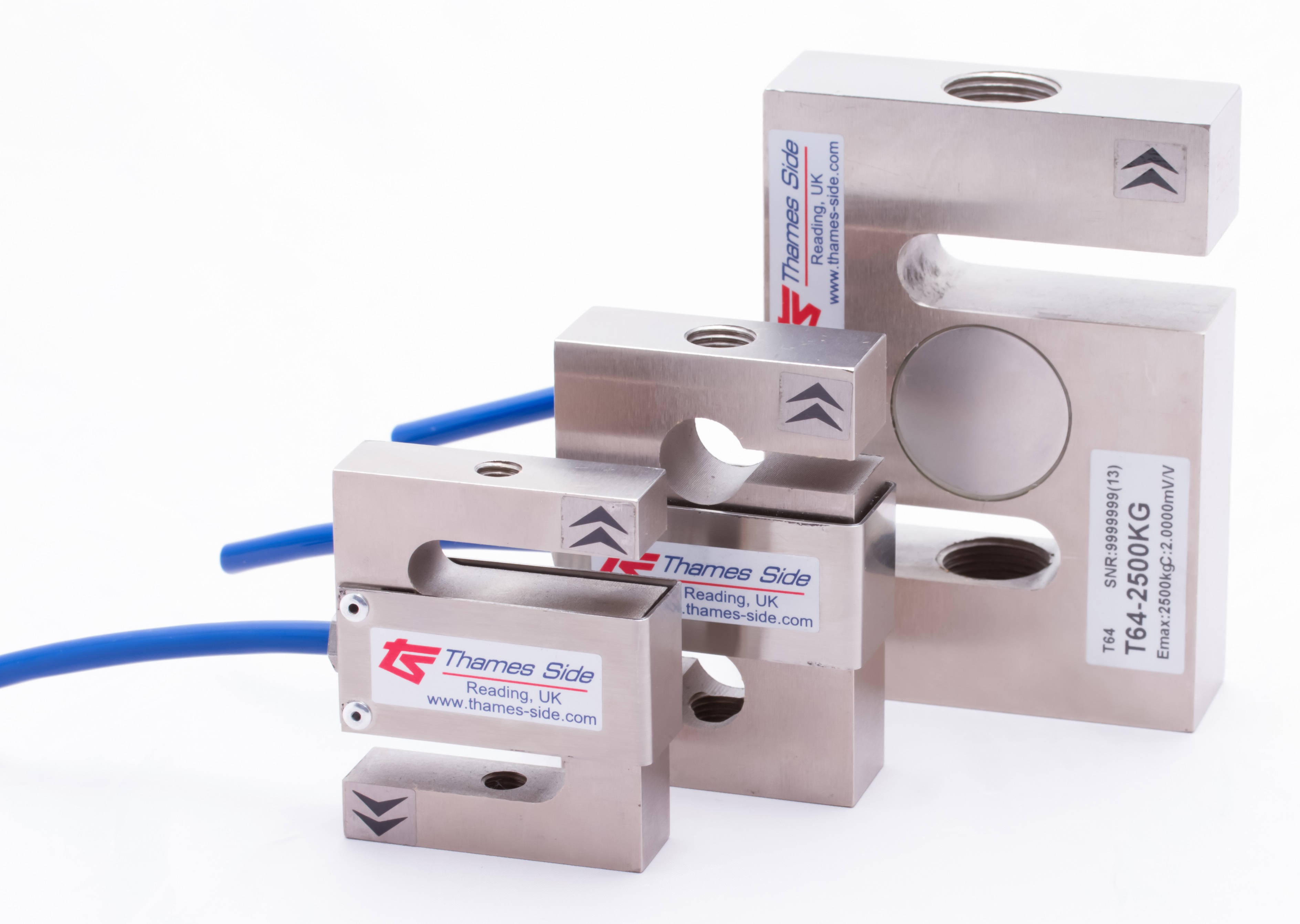

T64 S-type Load Cell

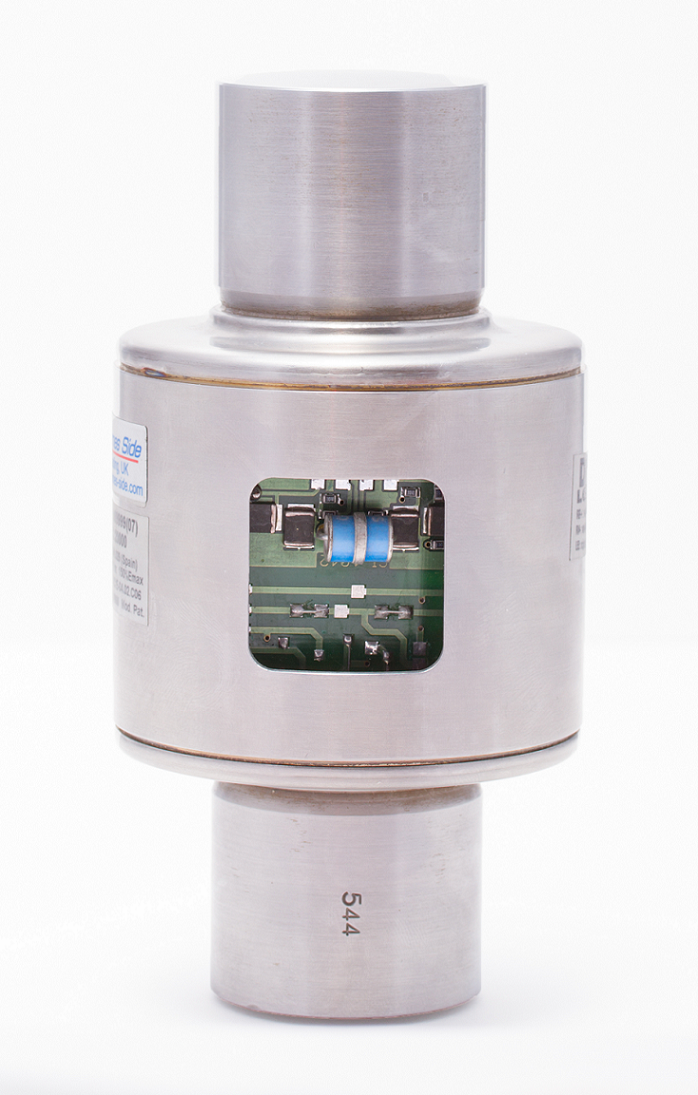

T34D Digital Compression (Rocker) Column Load Cell
Thames Side 350n Load Cell
T38 High Temperature Load Cell
T64 S-type Load Cell
T34D Digital Compression (Rocker) Column Load Cell

350n Shear Beam - Copy

Key Features

  • Nickel plated steel construction, silicone sealed to IP66
  • Complies with OIML R60 regulations up to 3000 divisions (C3) for scales according to EN 45501
  • Nominal capacities: 300kg, 500kg, 750kg, 1000kg, 1500kg and 2000kg
  • Wide operational temperature range: -30 °C to +70 °C

Applications

  • Platform scales
  • Big bag (FIBC) filling
  • Belt scales and conveyors

The 350n low cost nickel plated steel shear beam is a high accuracy load cell that is widely used in industrial weighing applications where a fully welded and hermetically sealed stainless steel construction is not required.  It has OIML C3 approval (which is ideal in legal-for-trade applications) and it’s potted and silicone sealed to IP66.

For use in platform scales, the 350n load cell has optimised pre-corner adjustment, calibrated in mV/V/Ohm by output current matching at ± 0.05%.  This reduces corner correction setup time to a minimum.

  • Nickel plated steel construction, silicone sealed to IP66
  • Complies with OIML R60 regulations up to 3000 divisions (C3) for scales according to EN 45501
  • Nominal capacities: 300kg, 500kg, 750kg, 1000kg, 1500kg and 2000kg
  • Wide operational temperature range: -30 °C to +70 °C
  • PVC cable
  • 5 year warranty

  • Platform scales
  • Big bag (FIBC) filling
  • Belt scales and conveyors
  • Tank and vessel weighing

It can be used together with the following stainless steel weighing modules: LA350 Anti-Vibration assembly and the unique LeverMount.
