Load Feet for Shear Beam Load Cells

Thames Side’s range of shear beam load cells can be used in many applications, one of which is for platform scales or supporting machinery mounted on the floor or a fixed surface.  For such applications, it is very common to use load feet to provide a firm fixing between the load cell and the mounting surface.

Different models of load foot are available, for use in different environments and with different shear beam load cells:

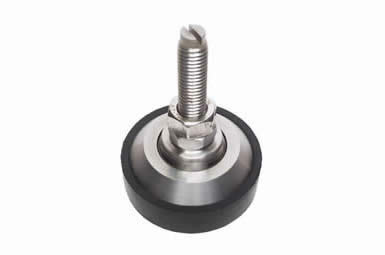

T85-FOOT-FT12 Load Foot

• Stainless steel shaft, M12 thread
• Rubber base
• Swivelling
• 300kg - 2,500kg capacity

T85-FOOT-35901 Load Foot

• Stainless steel shaft, M12 thread
• Rubber base
• Covered ball joint - superior to FT12 foot
• Swivelling
• 300kg - 2,500kg capacity

T85-T-FOOT-35916 Load Foot

• Stainless steel body and shaft
• Rubber base
• For use only with T85-T (Blind Hole) Shear Beam Load Cell
• 300kg - 2,000kg capacity

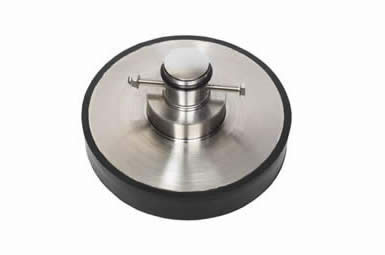

T85-FOOT-35917 Load Foot

• Stainless steel shaft
• Rubber base
• Swivelling
• 3,000kg and 5,000kg capacity

We can supply technical drawings and 3D CAD files (e.g. in STEP format) to engineers who are specifying load cells with load feet for new equipment and we can supply installation drawings/technical manuals for site engineers responsible for system installation.

We hold an extensive stock of standard products in our UK and EU warehouses and our Global Network of carefully selected Partners also carries stock, so that products can be shipped immediately on request.

Contact Us or Find our Local Partner nearest you for more information and a fast quotation.

Further information

Contact Thames Side now to discuss your requirements for load feet in any application. We have the experience and applications knowledge to provide expert guidance on the optimum solution for you.
