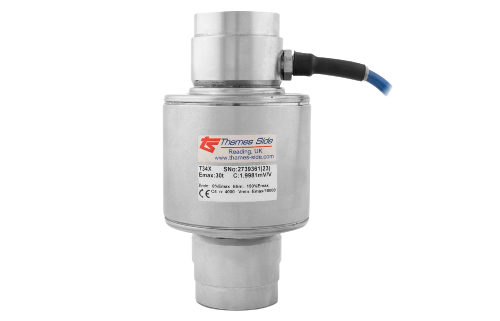

T34X Column Cell

The T34X is an analogue (analog) compression column stainless steel load cell with a self-centering rocker column design for use in legal-for-trade applications.

It is especially suitable for use in truck scales / weighbridges, thanks to its OIML C4 (4000 divisions) approval, its robust design and a rodent resistant (anti-rat) polyurethane cable. Anti-rotation is achieved by the use of parallel surfaces in the load cell and lower mounting accessory (cup).

With a fully welded and hermetically sealed construction, protected to IP68 and IP69K, and integral lightning protection as standard, it is simple to install and has become the benchmark load cell solution for vehicle scales.

To simplify the commissioning of a truck scale or weighbridge, the T34 load cell has optimized pre-corner adjustment because it is calibrated in mV/V/Ohm by output current matching.  This reduces the time needed to calibrate a truck scale or weighbridge (either at first verification or when a load cell may be replaced, for example due to severe flooding / monsoon weather).

Make an enquiry about this dependable, robust load cell for truck scale / weighbridge applications.

The associated LA34X nickel-plated alloy steel mounting accessory provides 2 mounting cups, 3 centering discs and mounting bolts.

For use in aggressive environments where stress corrosion or acid attack is a potential problem, a special Parylene coating can be specified as an option.  In high temperature environments, an optional variant for use up to +150 °C is available.

Key features:

• Wide range of capacities from 15,000kg to 60,000kg
• Stainless steel construction
• Calibrated in mV/V/Ohm
• Wide operating temperature range: -50 °C to +80 °C
• Legal-for-trade approval to OIML R60 C4 (4000 divisions) up to 60,000kg
• Fully welded and hermetically sealed stainless steel load cell, protected to IP68 and IP69K
• Simple installation with self-centring design
• In-built surge arrestors (GDTs) for lightning protection as standard
• Optional high temperature version for use up to +150 °C

Typical applications:

• Truck scales, weighbridges and vehicle weighing
