Customised Load Pins / Force Measurement Pins

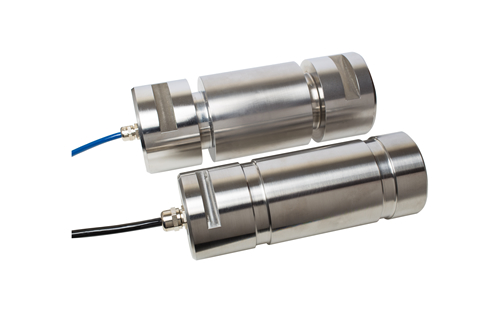

Strain gauged load pins can easily replace an existing clevis, pivot pin or solid shafts in machinery or equipment to measure the load or force at that point.

Make an enquiry about our custom-made load pins.

Key features:

• Custom manufactured to replace existing pins, normally without changes to the existing mechanical structure
• Robust construction in high strength stainless steel, with optional material certificate to EN 10204 3.1B
• Choice of locking/retaining (anti-rotation) options to suit your application
• Fast delivery with CAD drawings supplied for approval before manufacturing
• Externally gauged for IP66 or internally gauged for IP68 protection
• Operating temperature from -20˚C to +90˚C
• High temperature option for use up to +180˚C
• Optional integrated 4-20mA amplifier for analogue outputs
• Single or dual (redundant) signal output options available
• ATEX approved option
• SIL 2 / SIL 3 safety rating options

Typical applications:

• Overload protection devices
• Load monitoring and safety systems
• Cranes, hoists and other lifting equipment
• Pivots and load shackles
• Load limiting systems, e.g. in conveyors
• On-board weighing in trucks, trailers and mobile machinery
• Marine applications, e.g. mooring lines and winches
• High temperature weighing and load monitoring systems
• Load monitoring and overload protection in hazardous areas (ATEX)
